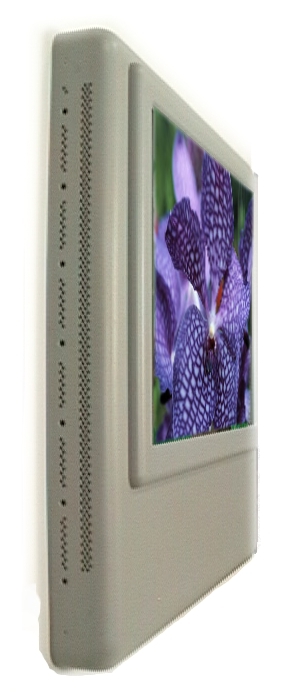

Our 21" Plasma Monitor (P/N 20133) is the world's versatile full color Plasma Monitor qualified for Onboard Entertainment Systems.
Features:
  • A wide 21" diagonal display, the monitor is 22" wide x 22" hight x 2.89" thick.
  • Slim and light weight design suitable for wall mounting.
  • High intensity screen with a wide viewing angle. The screen has a white peak brightness of 180cd/m2 and a viewing angle of greater than 160° comparable to that achieved with CRT's.
  • Meets DO-160C as applicable and ARINC 722 electrical interface.



Item Rating


Type: Plasma: 21"
Display Pixels: Horizontal 630 x Vertical 480
Effective Display Size:: 21" to corners (423 x 316mm)
Brightness: 180 cd/m2
Display Cells: Horizontal 1,920 x vertical 480 (RGB vertical stripe)
Pixel Pitch Horizontal 0.66mm x vertical 0.66mm
Cell Pitch Horizontal 0.22mm x vertical 0.66mm
Maximum Viewing Angle: Over 160 degrees
Contrast Ratio: 60:1 Typical
Interface: Horizontal/Vertical synchronous signal, blanking signal, clock, digital RGB data(signal TTL level)
Physical Dimensions: 22"W x 22"H x 2.89"D
Power Requirements: 115V AC 400Hz 28VDC (200W typical)
Operational Temp. -15°C -+ 55°C
Weight: 32 lbs.
